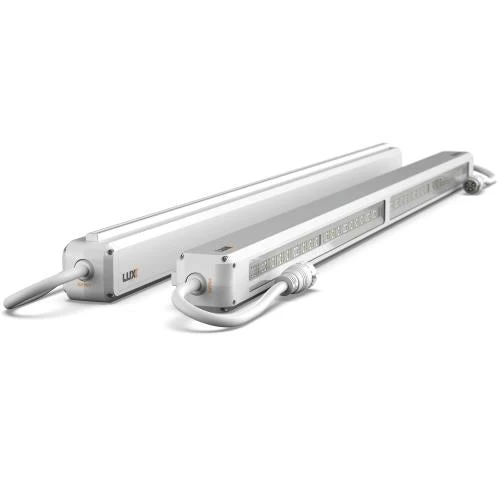

LUXX 200w Bar 208-277v

 The Luxx 200W LED Bar is designed and built using top quality components including top bin diodes that produce a plant loving Veg Spectrum.  The 200w LED Bar form factor is adaptive to any cultivation environment by being able to select your wattage and footprint. The 200w LED Bars can be run in single stacked, multi-stacked, or a greenhouse grow setting. The modular design allows you to customize and scale up your 200w LED Bar system to fit your operation needs.

The 80R spectrum provides a full spectrum with maximum red photon content. The blue-green balance supports healthy plant morphology and enables an improved working environment and improved visual inspection for growers.

The 90R spectrum is a high efficiency, blue-red spectral combination specifically designed for stacked grow architectures. In the vegetative growth phase the 90R spectrum achieves healthy, fast growing plants with shorter stature perfect for stacked growth.

• 10ft 240V (HGC906341) and 277V (HGC906342) cords, connectors, and splitters SOLD SEPARATELY
• 1 bar
• ETL Listed
• Modular design
• Mounts to Unistrut
• Bar bracket (HGC906320) SOLD SEPARATELY, strongly recommended to provide a fully modular fixture to fit both 4’ and 5’ footprints.
• Configure a 200W, 400W, 600W, 800W, or 1000W
• Available in 80% red or 90% red
• Manual & Auto Dimming
• All in one design
• Plug & Play
• 5-year warranty

The LUXX 200 LED features manual and auto power adjustment. Delivering the flexibility to dim the unit down to 50% total power for lower photon intensity, without affecting the quality of the spectrum.

Specification

	EACH	CASE	PALLET
Quantity:		4	48
Volume (cf):	0.629	3.231	41.790
Dim Weight (in3/lb):	7.824	40.165	519.517
Weight (lb):	11.500	47.880	834.000
Length (in):	50.830	51.650	51.770
Width (in):	3.940	8.860	35.430
Height (in):	5.430	12.200	39.370
Product Weight (lb):	0.000
Product Length (in):	2.830
Product Width (in):	49.000
Product Height (in):	2.360
Voltages:	277v
