Standard Commercial NFT Growing System

PLEASE NOTE – This item ships direct from the vendor. Freight will be quoted at time of order. Hydrofarm freight incentives do not apply.

If you have questions about this system, call the American Hydroponics support line: 888.993.5780

2012HL STANDARD SYSTEM – 1152 total sites

The 2012HL Standard system comes with everything you need to get the system up and running. This system comes with the initial water analysis package, steel table frame, growing channels, all feed and return plumbing, 150 gallon reservoir, submersible pump, channel scrub brushes with long handle, end caps, float valve and float valve plumb kit.  Everything needed to grow either basil or lettuce including top-of-the-line Paramount Seeds and crop specific nutrients. Components included are as follows:

• Water Analysis package with instructions. To be completed before system is setup.
• (1) 20′ x 12′ steel table frame
• (2) 10′ covered collectors with Drip Cap
• (2) 10′ Feeder Manifolds with grommets, micro-tubes and 1″ control valves
• (32) 12′ Finishing Channels – Channels have 18 sites per channel (576 sites total)
• (8) 12′ Nursery Channels – Channels have 72 sites per channel (576 sites total)
• (1) 150 gallon reservoir
• (1) Rio 32HF submersible pump
• (2) channel scrub brushes
• (1) 12′ handle for scrub brush
• (1) Float Valve
• (1) Float Valve Plumbing Kit
• (1) Instructions
• All necessary feed and return plumbing

2012HL Growing Supplies

The 2012HL Growing Supplies – provides enough growing supplies for 3 months. Components included are as follows:

• (2) 5 gallon stock tanks with covers (for nutrients)
• (1) 1 gallon acid tank (for pH adjuster)
• (1) NutriTest Pro
• (350) Lettuce or Basil Bags
• (1) Case of LC1-1″ Oasis cubes (enough for approximately 3 months)
• (1000) Top-of-the-line pelleted Butterhead lettuce seeds

                  or

• (1) 1oz packet of Genoveser Basil seeds. (enough for 4+ crop turns)
• (2) Gallons of 10% pH down
• (3) 8kg batches of Lettuce or Tasmin Bay (Basil) 2-part nutrients (enough for 3+ months)

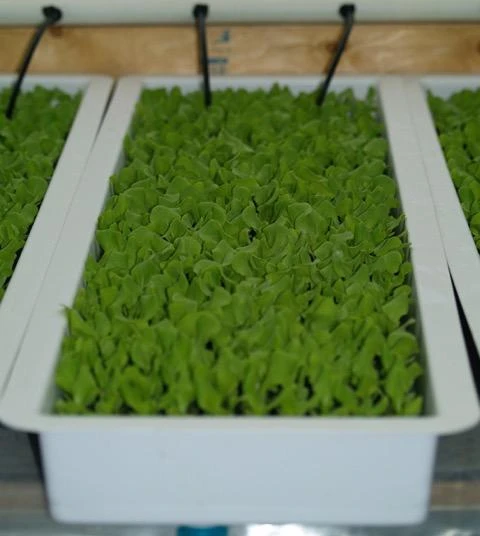

Three Tray Propagation System

The Three Tray Propagation System is an automated 3-tray propagation system for propagating seeds for the 2012HL NFT system. Propagation, being one of the most crucial steps for a healthy crop rotation, is very important to get right the first time. If seedlings are not healthy out of the gate, the plant will suffer through adulthood. Components included are as follows:

• (1) Table Frame
• (3) AmHydro propagation trays with fill/drain fittings
• (1) 30 gallon reservoir with cover (EPI)
• (1) Float Valve
• (1) Float Valve Plumb Kit
• (1) Timer TN311C
• (1) Collector with drain plumbing
• (1) Feeder Manifold with feed plumbing and pump
• (1) 44″x46.5″ ¾” Plywood
• (1) 44″ piece of 2×6
• (1) Instructions

Three Tray Bottom Heat Package

The Three Tray Bottom Heat Package includes heat mats and a thermostat to keep the seedlings at optimum temperatures. Components included are as follows:

• (1) Quad Stat Thermostat (can power up to 4 heat mats)
• (2) 44in by 22in heat mats
• Required plastic and wire mesh
